| Algemeen |
| Processormodel | Intel® Processor Core i3 N305/ 6M Cache, up to 3.80 GHz |
| Besturingssysteem | Windows 11 Pro |
| Software |
| Voorgeïnstalleerde software | 1 maand gratis testversie voor nieuwe Microsoft® 365 klanten |
| Processor |
| Processorfamilie | Pentium |
| Aantal processorkernen | Okta-Core (8 Cores) |
| Processor socket | Embedded in SOC |
| Geheugen |
| Intern geheugen | 8 GB |
| Geheugenlayout | 1 x 8 GB |
| Maximum intern geheugen | 8 GB |
| Kloksnelheid geheugen | PC5600 MHz |
| Intern geheugentype | DDR5 |
| Geheugenslots | 1 stuk(s) |
| Geheugen form factor | SO-DIMM, 204-polig |
| Opslagmedia |
| Totale opslagcapaciteit | 240 GB |
| HDD interface | 1x M.2 PCIe 2230/2242/2280 (Key-M ,PCIe x2 Gen3/NVMe SSD modules) |
| SSD interfaces | SATA-3 |
| SSD capaciteit | 240 GB |
| HDD capaciteit | 1 x 240 GB - SSD |
| Aantal storage drives ondersteund | 1 stuk(s) |
| Opslagmedia | SSD M.2 |
| Prestatie |
| Markt positionering | Industry Business |
| Type product | Personal-Computer |
| Geluidsniveau | 0 dB |
| Audio-uitgangskanalen | Stereo |
| Chipset moederbord | Alder Lake N SoC |
| Audiosysteem | High definition audio |
| Design |
| Type behuizing | Mini format |
| Certificering | Assemblierung volgens ISO9001 in Duitsland Compatibility: SMBios (DMI), EnergyStar 8.0), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required), 24-7 ready SSD required |
| Toetsenbord formaat | Optioneel |
| Toetsenbord |
| Taal toetsenbord | optioneel |
| Aansluiting | USB |
| Technische details |
| Land | International |
| Toepassing | Digital Signage |
| Inhoud van de verpakking |
| Meegeleverde accessoires | Quick Install Guide (DE/ EN), Driver CD, AC adapter, Europlug CEE 7/16 1.8m, 2-delige standvoet |
| Gewicht en omvang |
| Hoogte | 3.6 (4.2) cm |
| Breedte | 14.7 (18.8) cm |
| Diepte | 16.5 (17.5) cm |
| Gewicht | 0.9 kg |
| Overige specificaties |

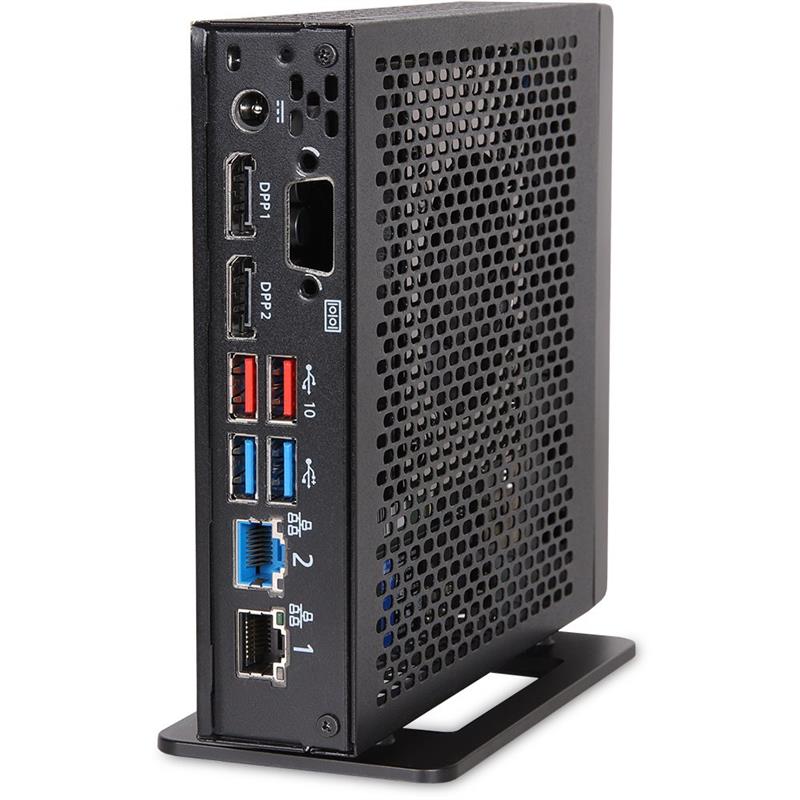

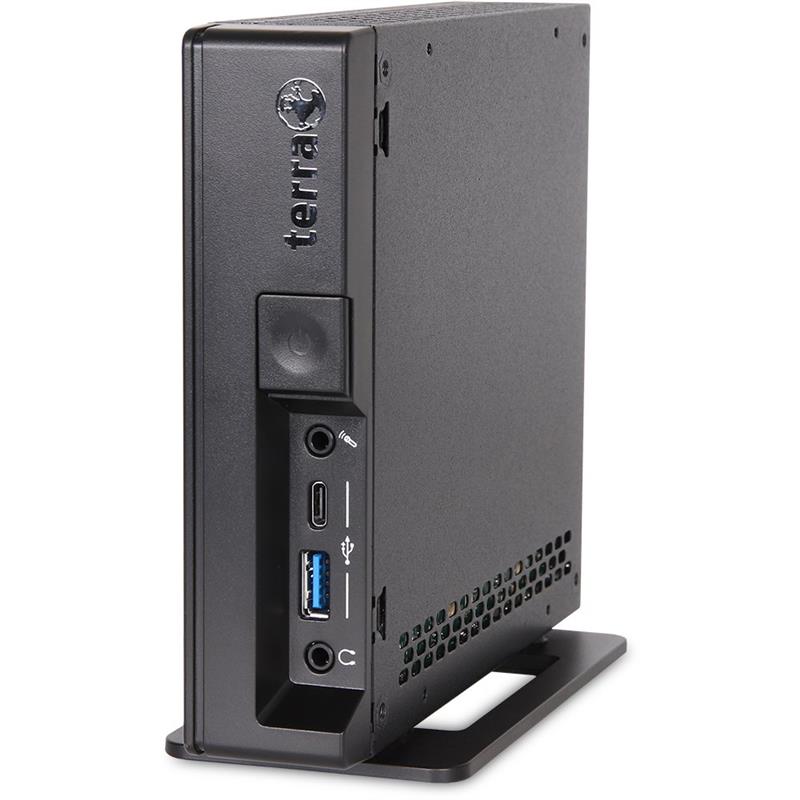

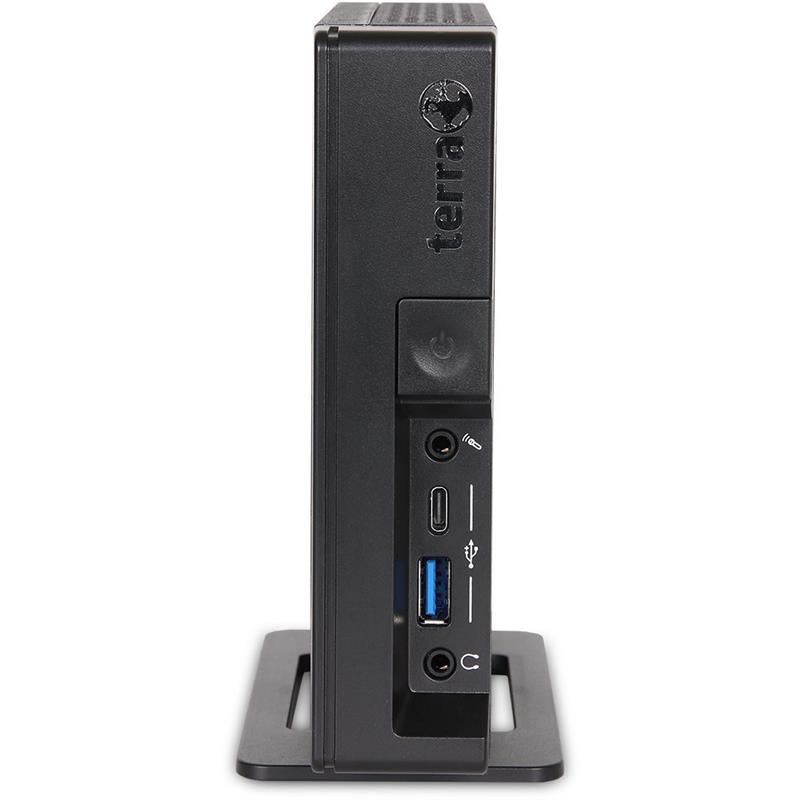

| Interface | Front: 1x USB 3.2 Type A, 1x USB-C 3.2, 1x Audio Rear: 1x COM, 2x DP, 4x USB 3.2 Type A, 2x RJ45, DC-in, Kensington |
| Compatibele besturingssystemen | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Merk moederbord | Kontron K3921-N6 (Core i3 N305) Industrial Series 24-7 ready Made in Germany |
| Type koeling | actief |
| Speciale eigenschappen | TPM 2.0, Fanless |
| Muis |
| Inclusief muis | optioneel |
| Grafisch |
| Geheugen ingebouwde grafische adapter | Dynamisch |
| Maximale resolutie ingebouwde grafische adapter | Display Port 1.2 max. 4096x2160 @ 60Hz |
| Grafische adapter | Intel® UHD Graphics Intel® Xe |
| On-board graphics adapter model | Intel UHD Graphics 605 (800 MHz) |
| Aantal displayports grafische adapter | 2x Display Port (DP) Ondersteunt Dual-Display-monitoring |
| Energie |
| Stroombron | External fanless power supply |
| Stroomverbruik (in standby) | Ø 2.0 Watt (S3 Mode. Suspend to RAM. WOL geactiveerd) 0.20 Watt Soft off (S5 Mode) W |
| Maximaal ingangsvermogen | 24 W |
| Voeding | Ø 6 Watt Long Idle-Mode Ø 27 kWh per jaar (TEC = Typical Energy Consumption) Voor verdere informatie ga je naar www.wortmann.de/green en/of in de Quicklinks van dit product (indien beschikbaar) |
| AC-adapter ingangsspanning | Wisselstroom 230 V ( 50Hz ) |
| Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0° C - 50 °C: Let op ! voor temperaturen boven de 40 °C wordt een SSD en SO-dimm aanbevolen welke bestand zijn tegen hogere temperaturen |
| Maximum temperatuur in bedrijf | 50 °C: Let op ! voor temperaturen boven de 40 °C wordt een SSD en SO-dimm aanbevolen welke bestand zijn tegen hogere temperaturen |
| Aanbevolen relatieve luchtvochtigheid bij gebruik | 10-80% (niet condenserend) |
| Netwerk |
| Ethernet LAN | Netwerkadapter - geïntegreerd |
| LAN controller | 1x Realtek RTL8111H, 10/100/1000 Mbps, WOL/PXE 1x Realtek RTL8125BG-CG with 10/100/1000/2500 MBit/s |
| Wi-Fi-standaarden | Intel AX201 Wi-Fi 6/ /Bluetooth met 1x externe antenne, 802.11ax, freq. 2.4 GHz + 5 GHz, Bluetooth 5.0 |
| Datalink-protocollen | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac Bluetooth 5.0 |
| Optische drive |
| Soort optische drive | Geen optical drive |
