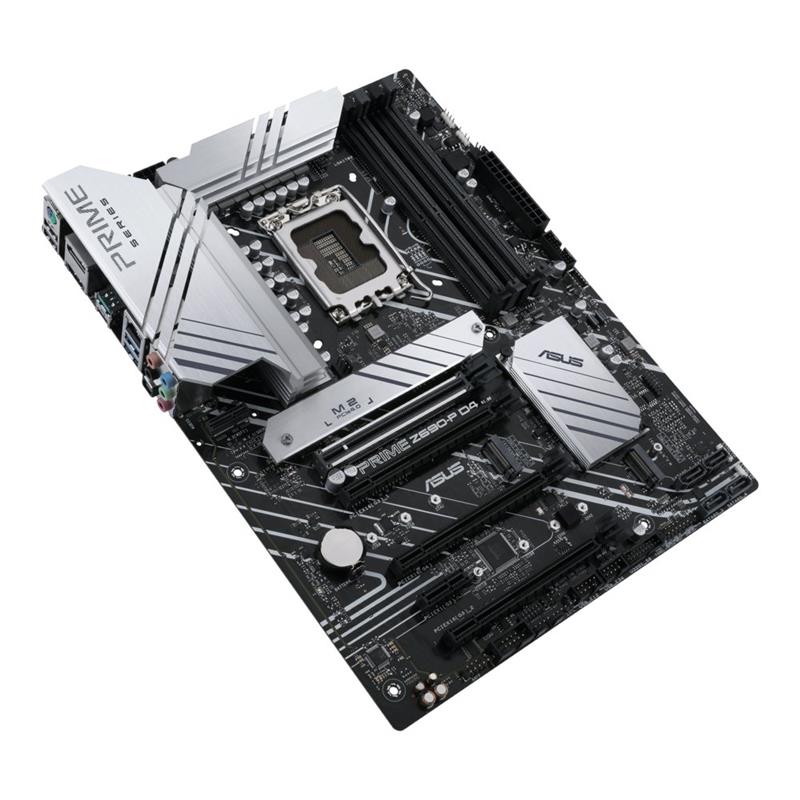

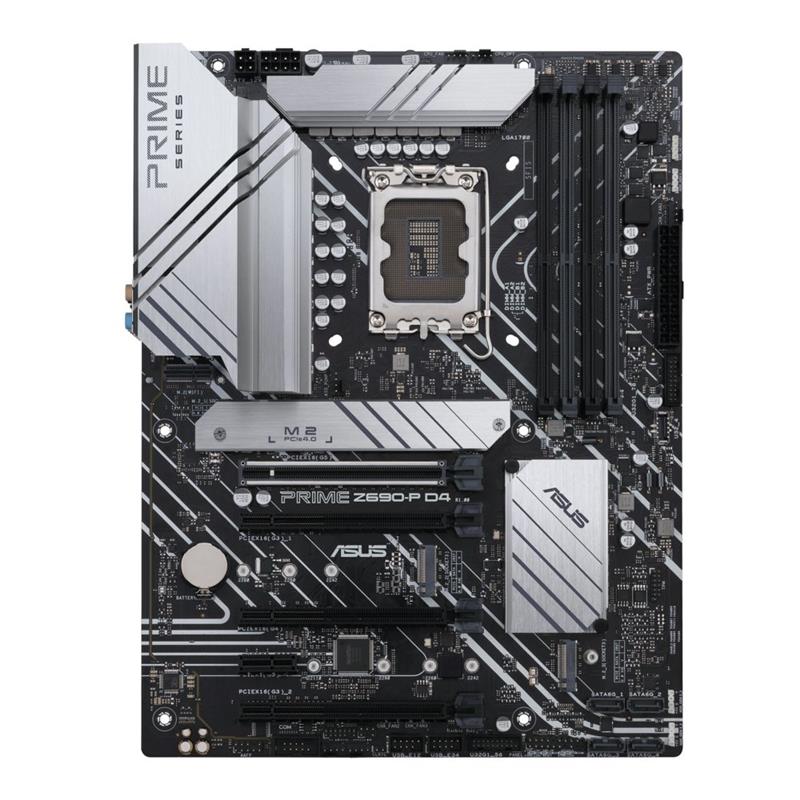

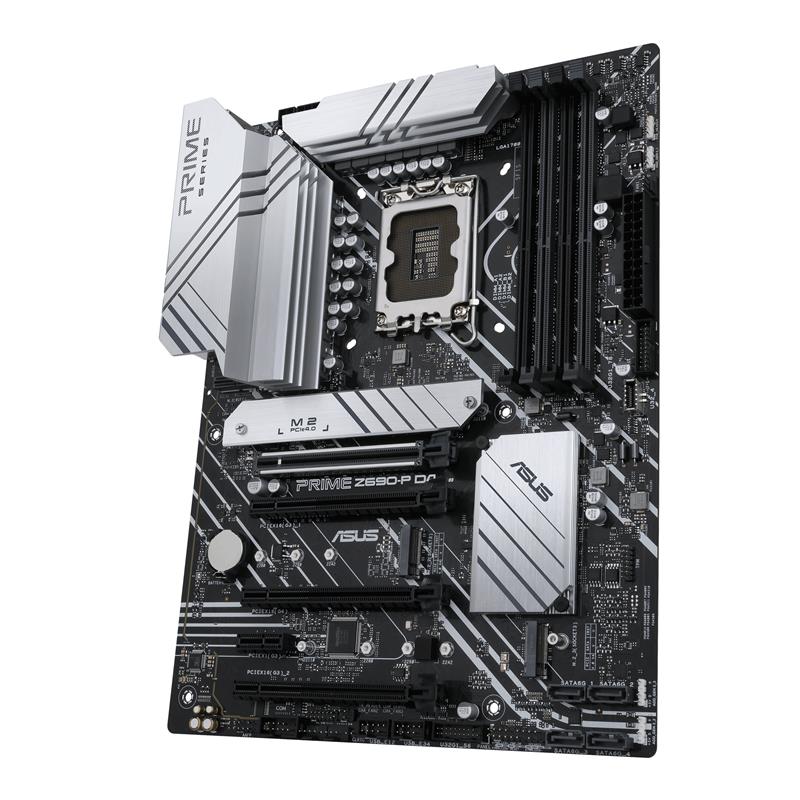

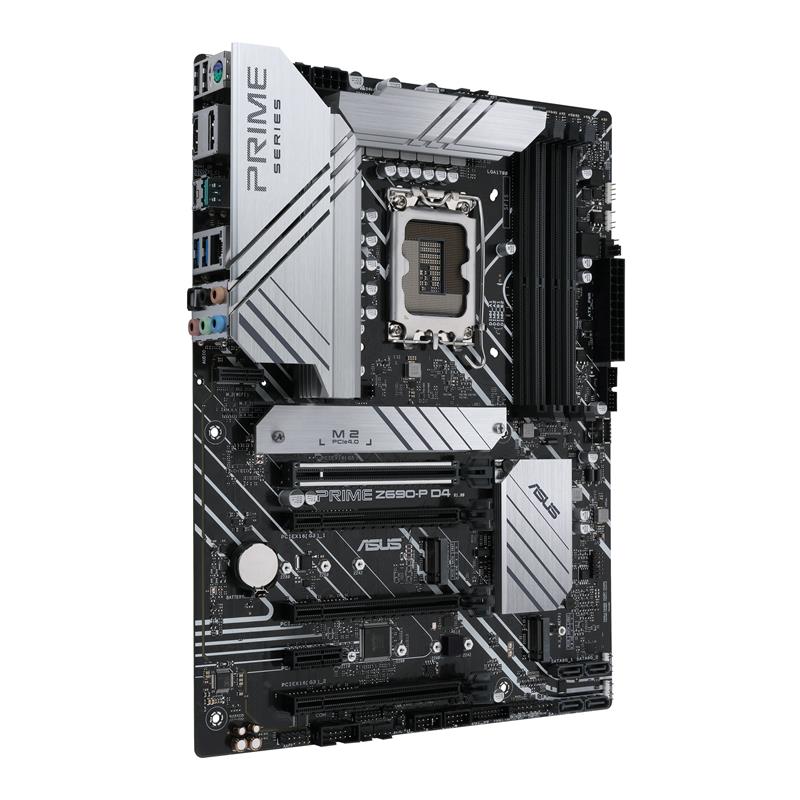

Beschrijving ASUS PRIME Z690-P D4 Intel Z690 LGA 1700 ATX
Intel® Z690 (LGA 1700) ATX-moederbord met PCIe® 5.0, drie M.2-slots, 14+1 DrMOS, DDR4, HDMI®, DisplayPort&trade, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt&trade 4 ondersteuning en Aura Sync RGB-verlichting
Belangrijkste eigenschappen
- Intel® LGA 1700-socket: klaar voor 12e gen. Intel® processors
- Verbeterde voedingsoplossing: 14+1 DrMOS, 8+4-pins ProCool-connector, lichtmetalen spoelen en duurzame condensatoren voor stabiele vermogensafgifte
- Uitgebreide koeling: grote VRM-koellichamen, M.2-koellichaam, PCH-koellichaam, hybride ventilatorheaders en Fan Xpert 4
- ASUS OptiMem II: zorgvuldige routing van traces en vias, plus basislaagoptimalisaties om de signaalintegriteit te behouden, voor verbeterd overklokken van geheugen
- Volgende generatie connectiviteit: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, frontpaneel USB 3.2 Gen 1 Type-C®, Thunderbolt&trade 4 header ondersteuning
Prime
ASUS Prime-serie moederborden zijn deskundig ontworpen om het volledige potentieel van 12e generatie Intel® processors te ontsluiten. Met een robuust voedingsontwerp, uitgebreide koeloplossingen en intelligente tuningopties biedt de Prime Z690-P D4 gebruikers en pc-zelfbouwers een scala aan opties voor het tunen van de prestaties via intuïtieve software- en firmwarefuncties.
Flexibiliteit
Uitgebreide regelaars staan aan de basis van de ASUS Prime-serie. Het Prime Z690-moederbord bevat flexibele tools om elk aspect van uw systeem te tunen, zodat u de prestaties zodanig kunt tweaken dat ze perfect passen bij de manier waarop u werkt, om zo uw productiviteit te maximaliseren.
Allround energie-efficiëntie
De Energy Processing Unit (EPU) optimaliseert automatisch het stroomverbruik en maximaliseert energiebesparingen met de Away-modus - een slimme instelling die een extreem energiebesparend scenario creëert door ongebruikte I/O-controllers uit te schakelen.
Flexibele lucht- en vloeistofkoeling regelaars
ASUS Fan Xpert 4-software biedt uitgebreide controle over ventilatoren en all-in-one (AiO) coolers. Of u nu koelt met lucht of vloeistof, de Auto-Tuning modus configureert met een enkele klik op slimme wijze alle parameters. Ook is er een Extreme Quiet (extreem stille) modus, die alle ventilatorsnelheden tot onder het standaard minimum verlaagt, zodat uw systeem fluisterstil blijft bij het uitvoeren van lichte taken. Ventilatoren en AiO-koelers kunnen ook via het UEFI BIOS worden aangestuurd.
Nauwkeurige digitale stroomregeling
De Digi+ Voltage Regulator Module (VRM) zorgt voor real-time controle over het spanningsverval, door automatisch te schakelen tussen frequentie- en vermogensefficiëntie-instellingen. Het stelt u ook in staat om uw CPU te fine-tunen voor ultieme stabiliteit en prestaties.
UEFI BIOS
Het gerenommeerde ASUS UEFI BIOS biedt alles wat u nodig hebt voor het configureren, tweaken en afstellen van uw systeem. Het biedt op intelligente wijze vereenvoudigde opties voor beginnende pc-zelfbouwers, naast uitgebreide functies voor doorgewinterde veteranen.
Geavanceerde tuning voor serieuze tweakers
Een intuïtieve, via het UEFI aangeboden Advanced-modus geeft u volledige controle. Een ingebouwde zoekfunctie maakt het gemakkelijk om opties te vinden, en diverse geavanceerde functies maken het mogelijk om op intelligente wijze genuanceerde aanpassingen aan te brengen, zodat u de prestaties precies zo kunt afstellen als u wilt.
Specificaties
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMI® Port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intell® Optane Memory H Series on PCH attached M.2 slots
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
USB
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

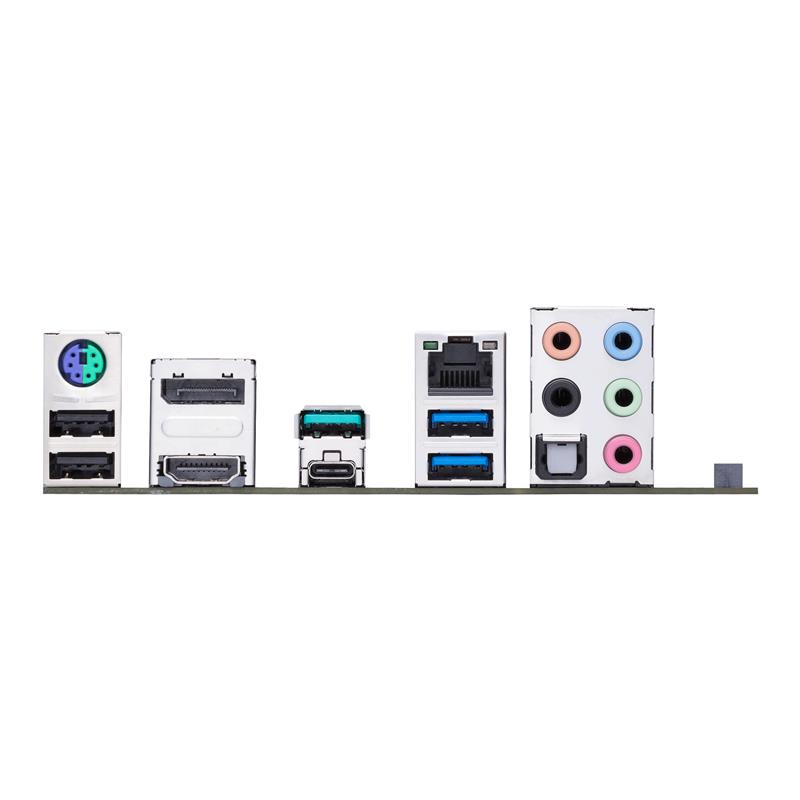

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt&trade header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide
Form Factor
ATX
30.5cm x 23.4cm
