Beschrijving AXAGON PCIe Adapter 4x USB3 0 UASP VIA *PCIEM *USBAF

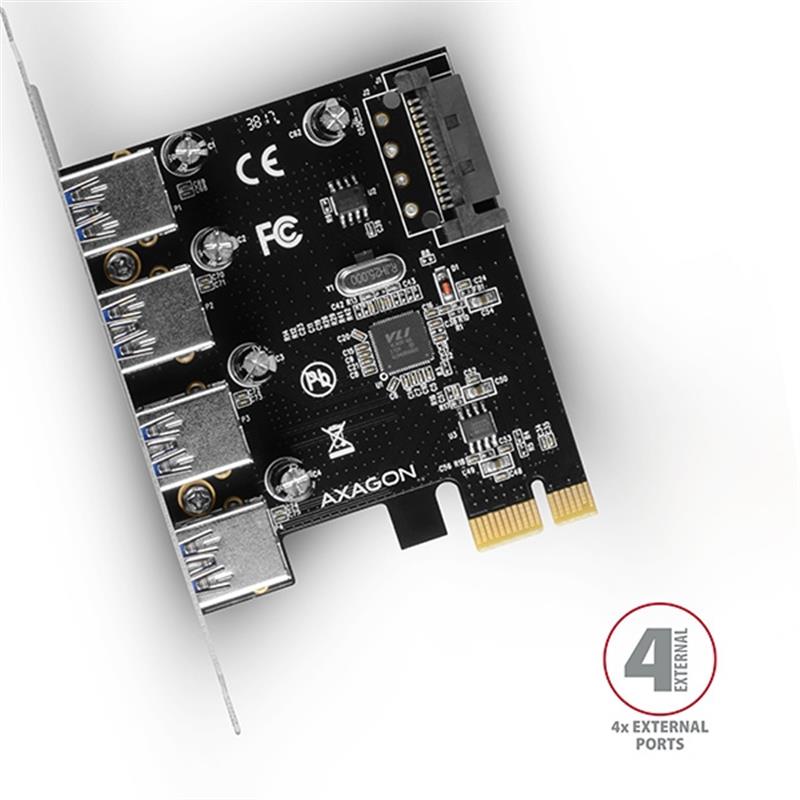

AXAGON PCEU-430VL PCI-Express card adds four external high speed USB 3.2 Gen 1 ports to your desktop computer.
All four SuperSpeed USB ports are taken out to the bracket. Reliable card power from PC power supply via SATA power connector.
The USB controller is equipped with a renowned VIA Labs company chipset with proven seamless compatibility and UASP support.
Input:
? PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
? Number of lines: (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
? A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output:

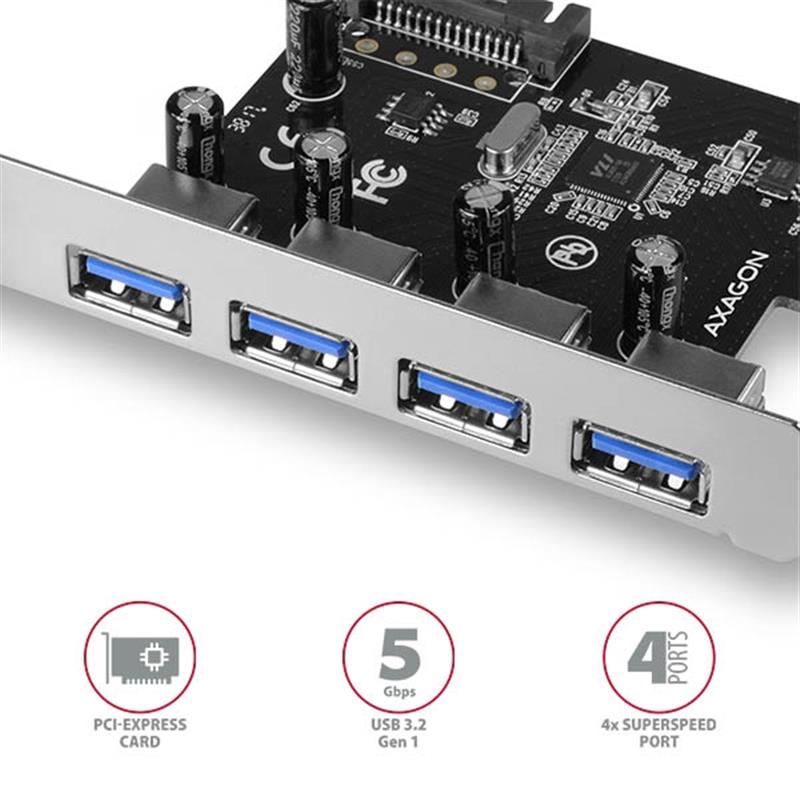

? 4x external USB 3.2 Gen 1 port with USB type A-F connectors.
? SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
? Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 a USB 1.1.
? Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).
? When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s.
Other features:
? Full Plug and Play support.
? Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.
? Compliant with the final official xHCI specification revision 1.0 by USB-IF.

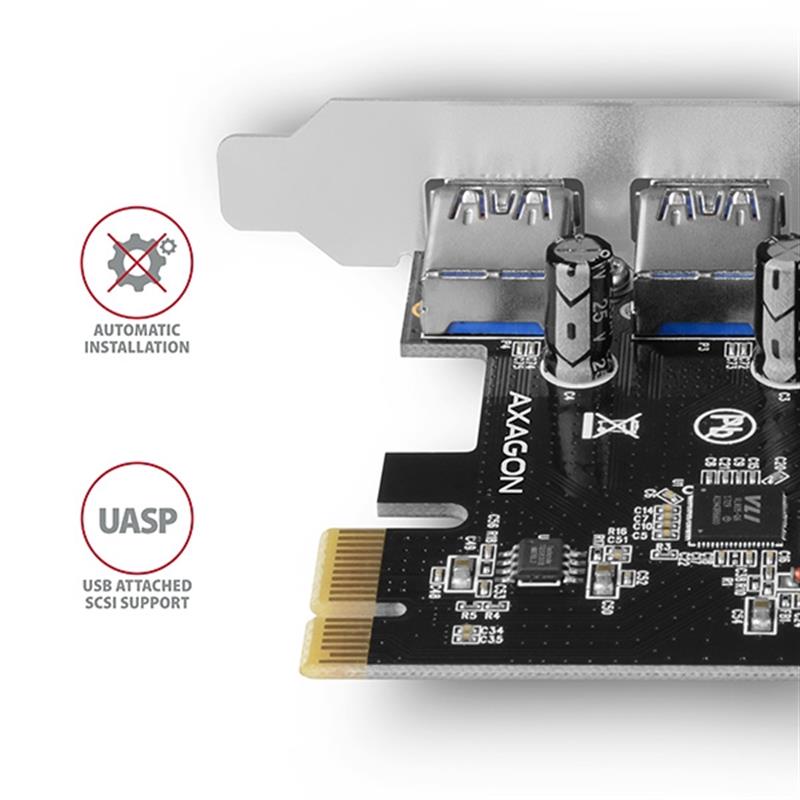

? Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
? Fully supports Hot Plug connecting and disconnecting of USB devices while running.
? Internal SATA power connector to powering the controller from a PC power supply.
? VIA Labs VL805 chipset is used.
Supported operating systems:
? MS Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.
? Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 and later versions, no external drivers are required, they are already part of the operating system.

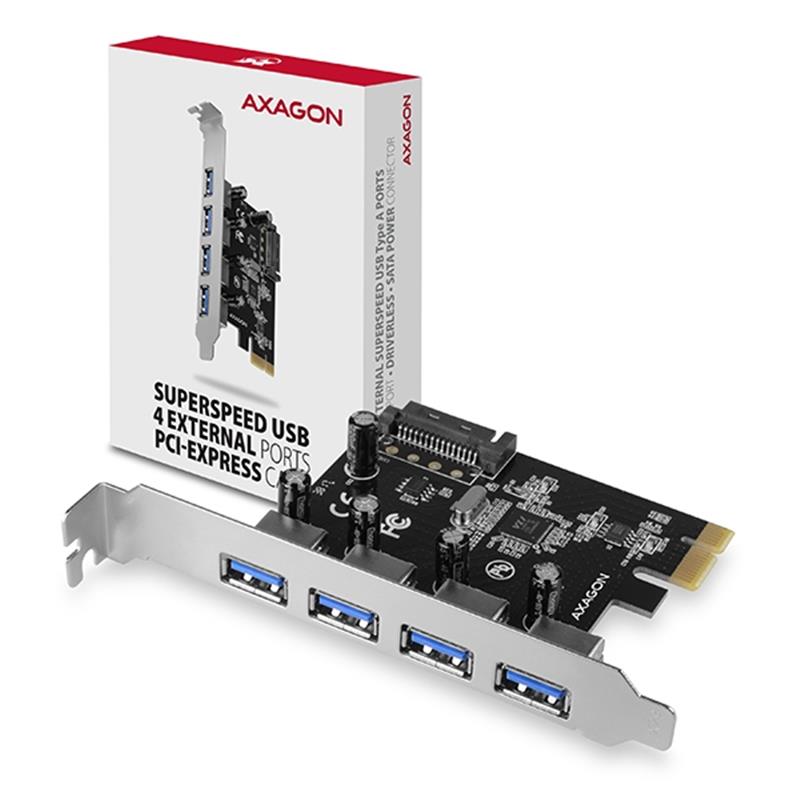

Package contains:
? PCI-Express controller with a standard bracket,
? multilingual guide CZ/DE/DK/ENG/ESP/FIN/FR/GR/HR/HU/IT/NL/PL/PT/RO/RU/SK/SWE/TR/BG/CN/ARA,
? packed in a cardboard box.
